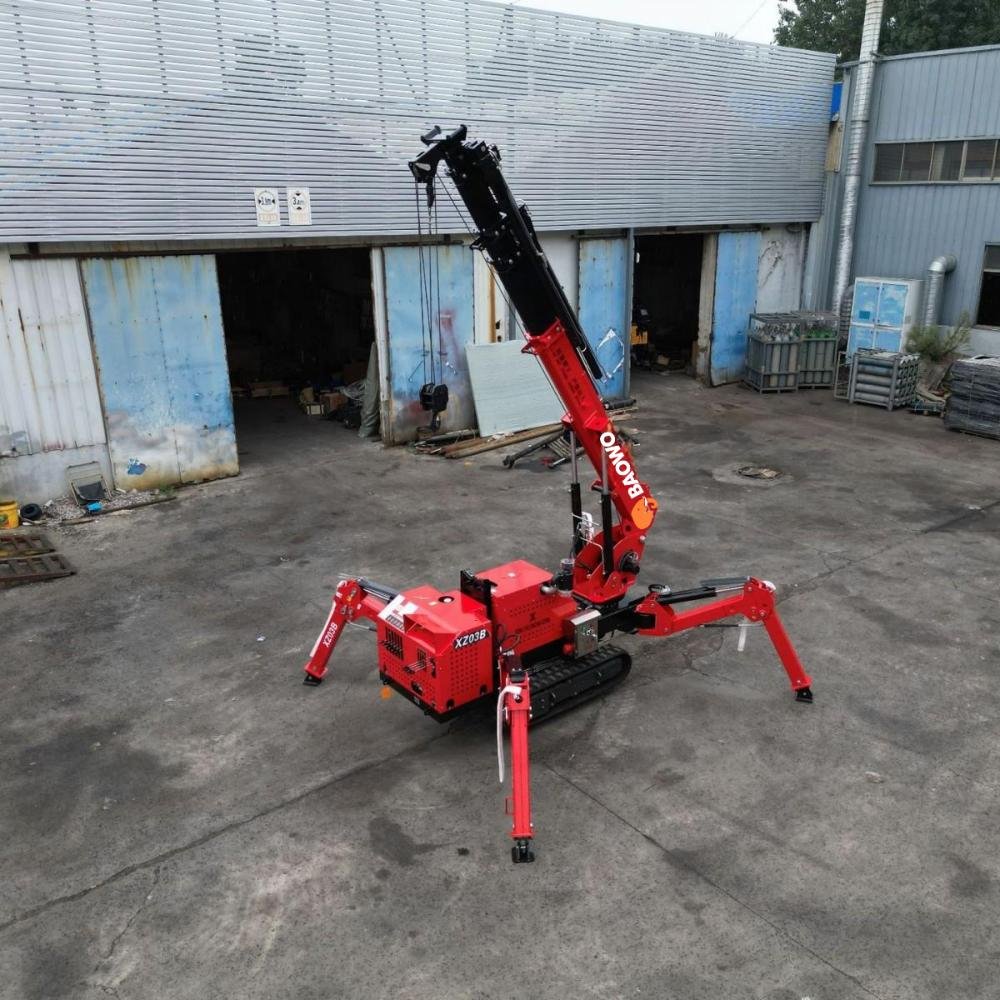

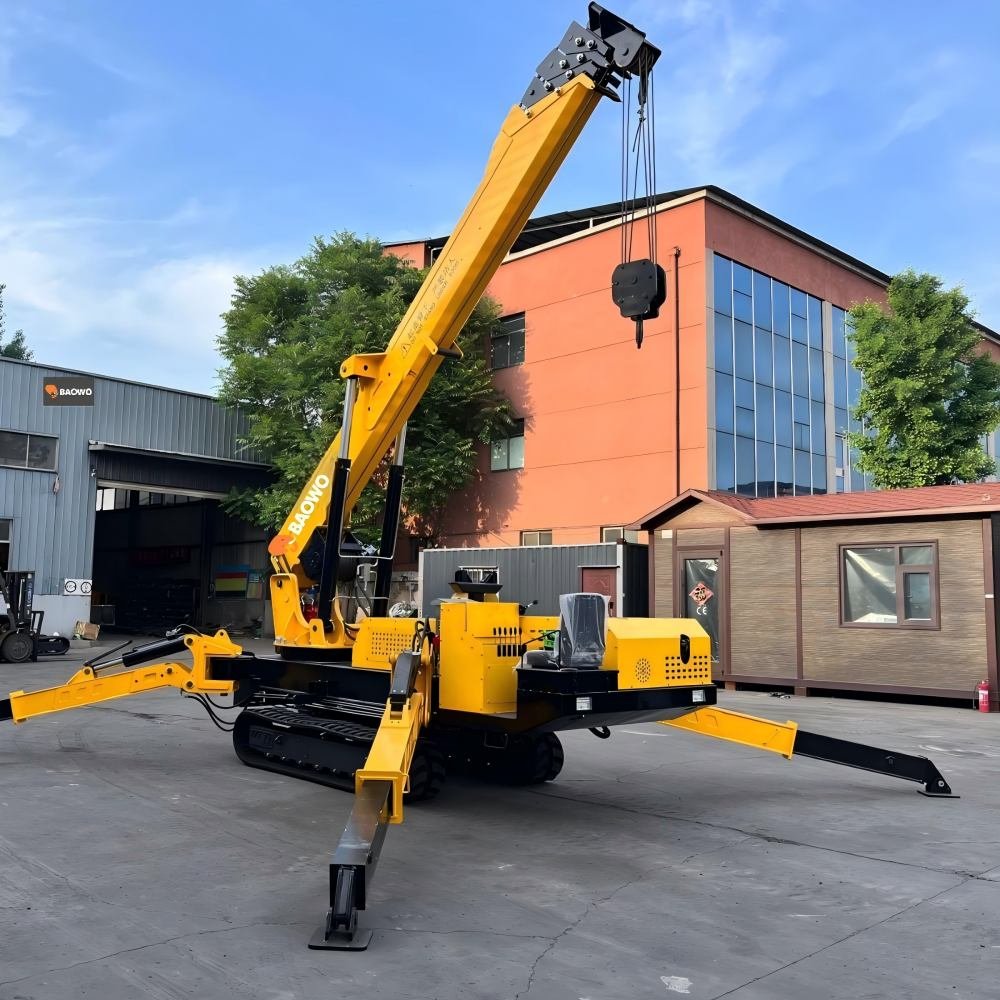

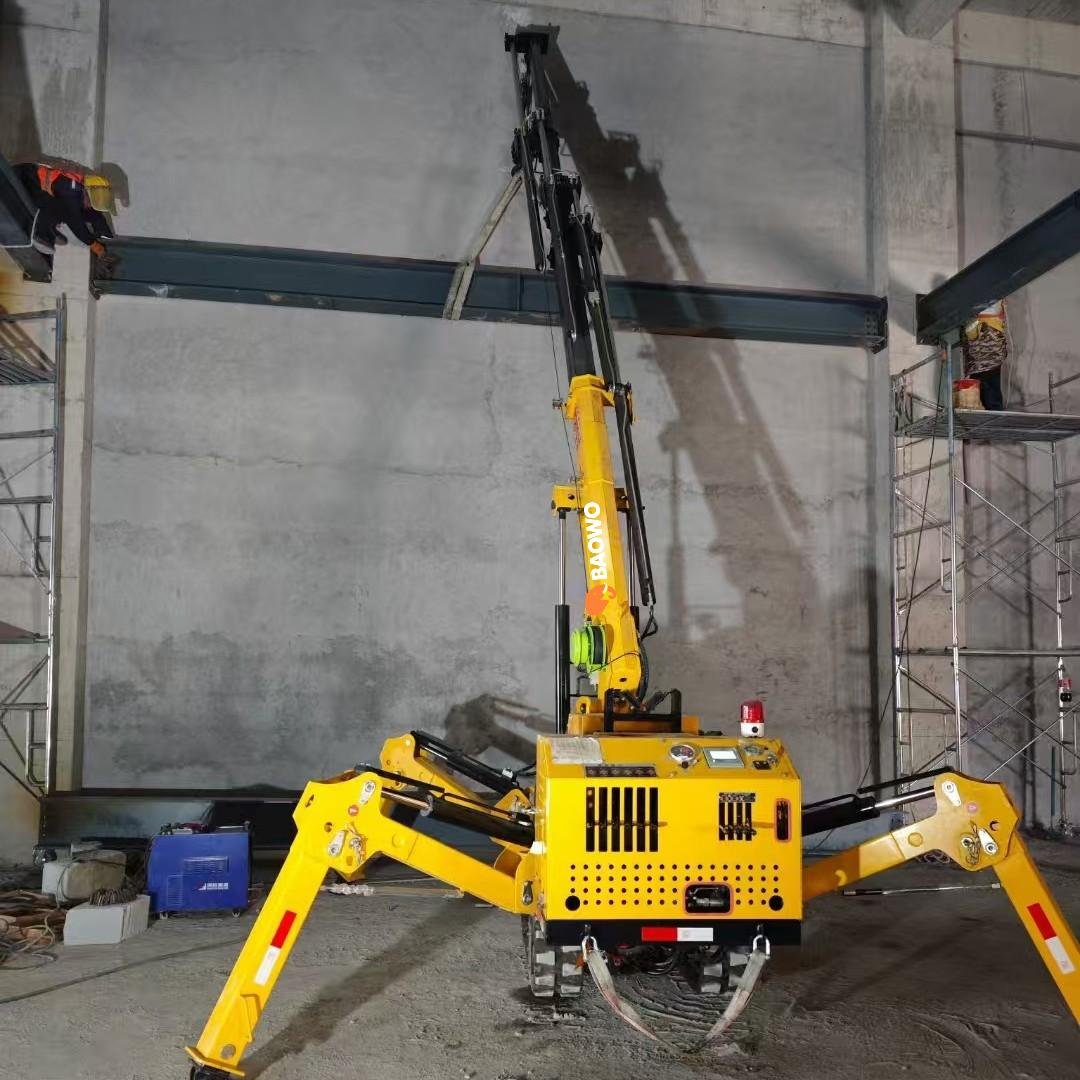

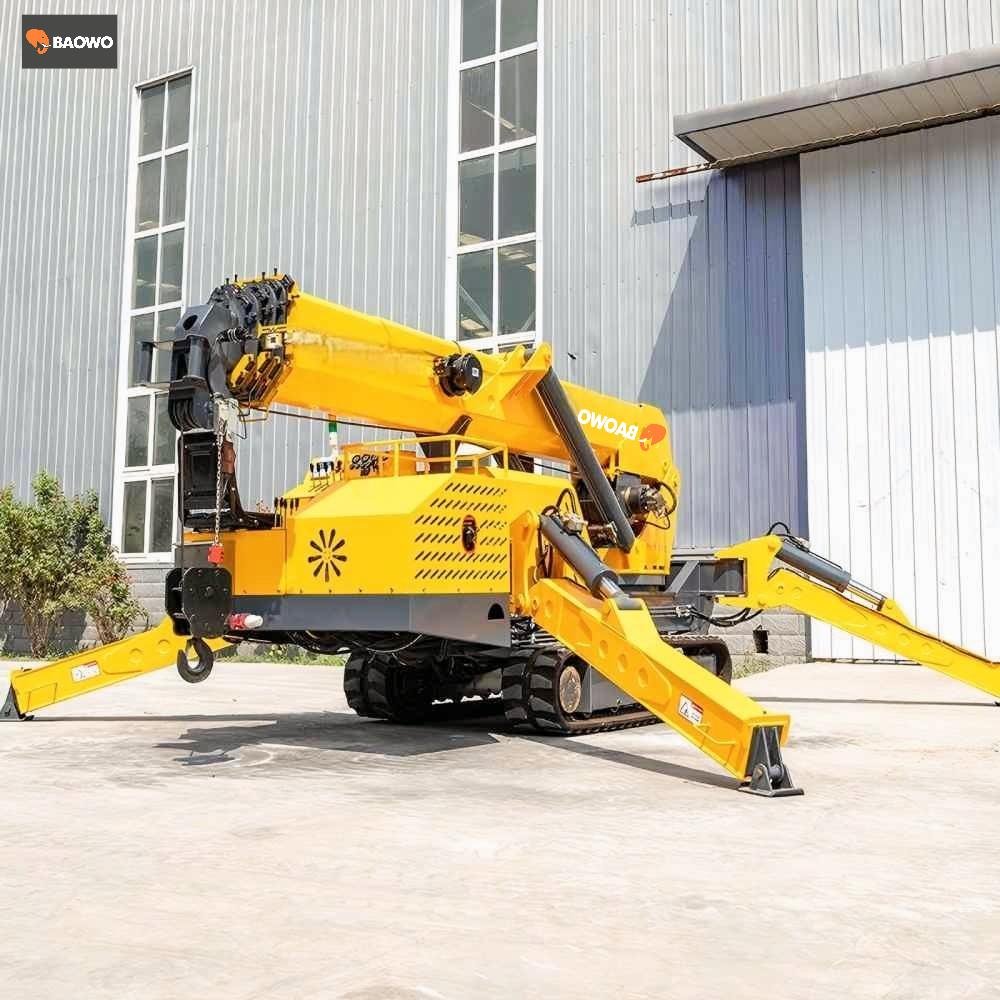

The BAOWO BW-5T (HC5.0) Spider Crane is a heavy-duty mini crawler crane designed for large-scale construction and industrial lifting tasks. With a 5-ton lifting capacity and 16.5-meter maximum lift height, it delivers exceptional reach and stability. The 6-section hexagonal fully automatic boom ensures maximum structural strength, while its 1400mm compact width allows access to confined industrial sites, rooftop projects, and multi-story curtain wall installations.

Equipped with dual power options (Diesel + Electric) and advanced safety systems, the BW-5T ensures precise, efficient, and emission-free lifting both indoors and outdoors.

Why Choose BAOWO

• Direct manufacturer from Xuzhou, China

• OEM & ODM customization available

• Trusted spider crane solutions exported worldwide

• Full after-sales support and spare parts supply



•

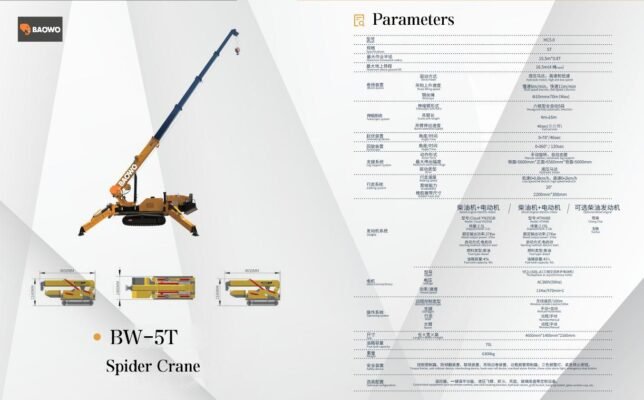

• Key Specifications｜

  • Max Lifting Capacity: 5T (5000kg)

  • Max Lifting Height: 16.5 m (4-fall rope)

  • Max Working Radius: 15.5 m × 0.8T

  • Boom Type: 6-section hexagonal fully automatic telescopic boom (4m – 16m)

  • Chassis Dimensions: 4650mm × 1400mm × 2160mm

  • Power Options: Diesel + Electric (380V) or Pure Diesel (Cloud YN25GB / Yanmar 4TNV88)

  • Travel Speed: Dual speed 0–0.8 km/h / 0–2 km/h

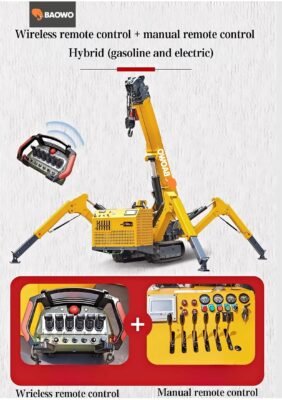

  • Control System: Wireless remote control

  • Safety Features: Torque limiter, interlocking device, voice alarm system

  ---

  Key Selling Points｜

  • Extended Reach: 16.5m maximum lift height for curtain wall installation, rooftop, and plant maintenance.

  • High Power-to-Size Ratio: 5-ton lifting in a compact 1400mm chassis for restricted industrial zones.

  • Advanced Safety: Torque limiter, interlock devices, voice alarm, and hydraulic support for zero-accident operation.

  • Hybrid Power Flexibility: Diesel for outdoor lifting, Electric for indoor, low-noise, zero-emission tasks.

  • Precision Control: Remote operation ensures millimeter-level accuracy and stable operation.





    Typical Applications｜

    • Large-scale curtain wall installation

    • Steel structure assembly

    • Industrial plant maintenance and relocation

    • Rooftop or multi-story indoor lifting

    • Confined urban construction sites

    •
