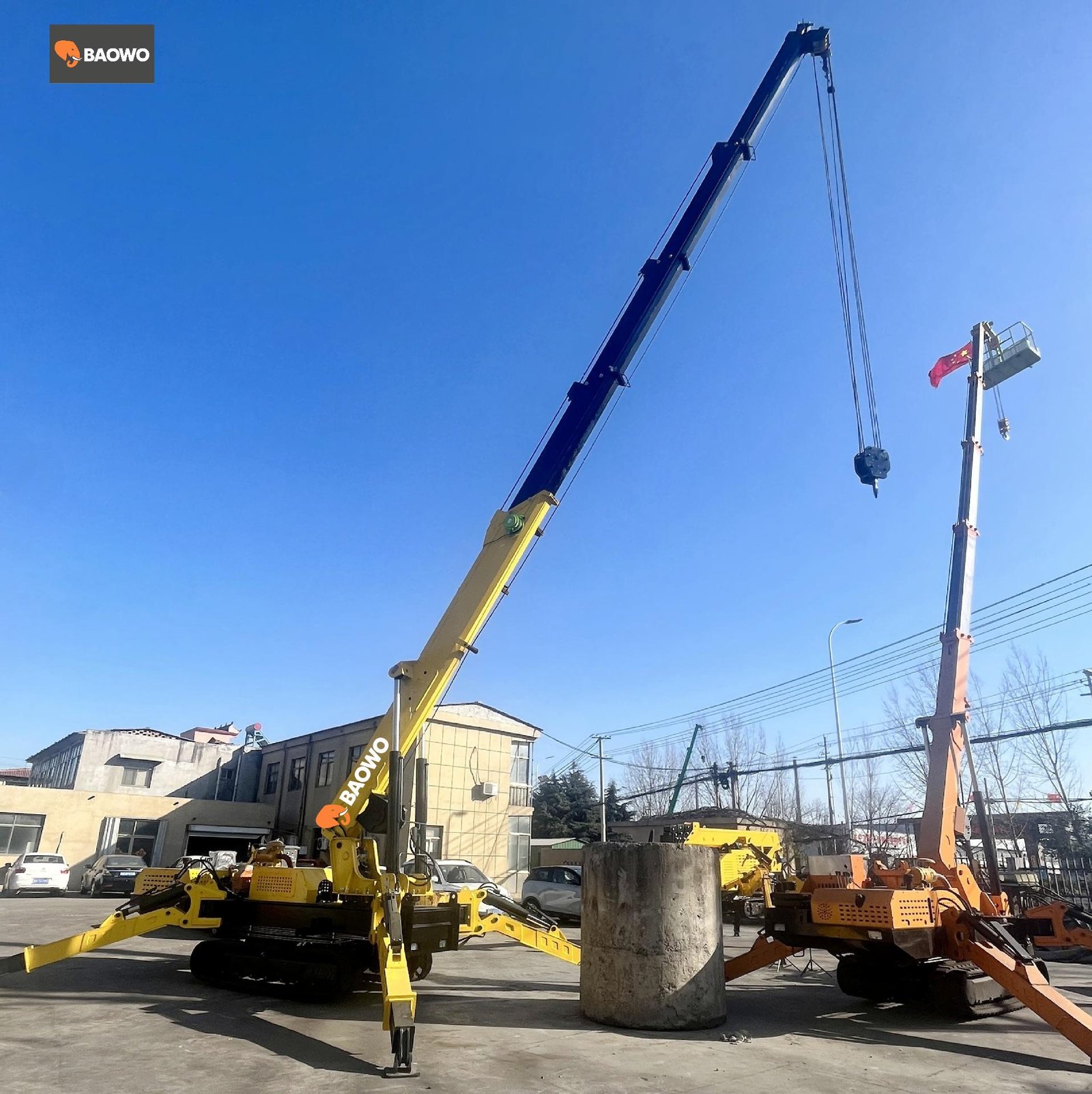

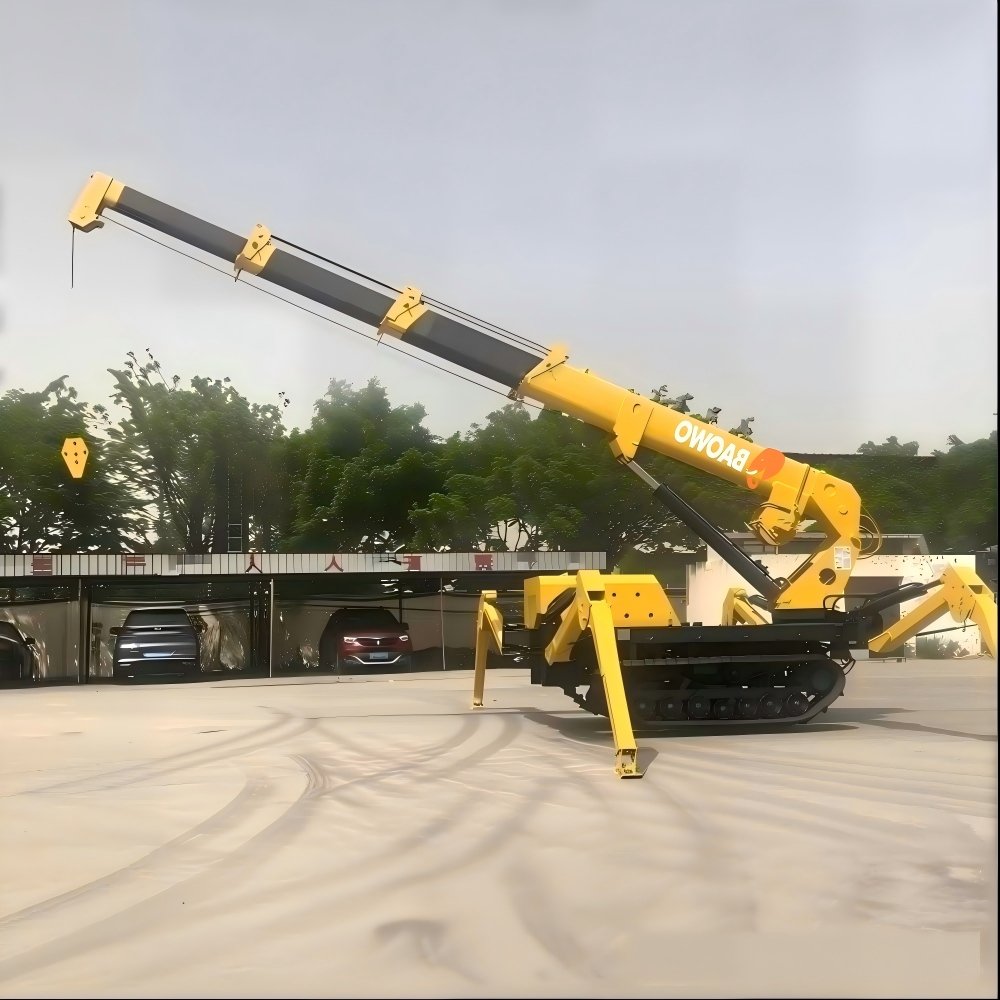

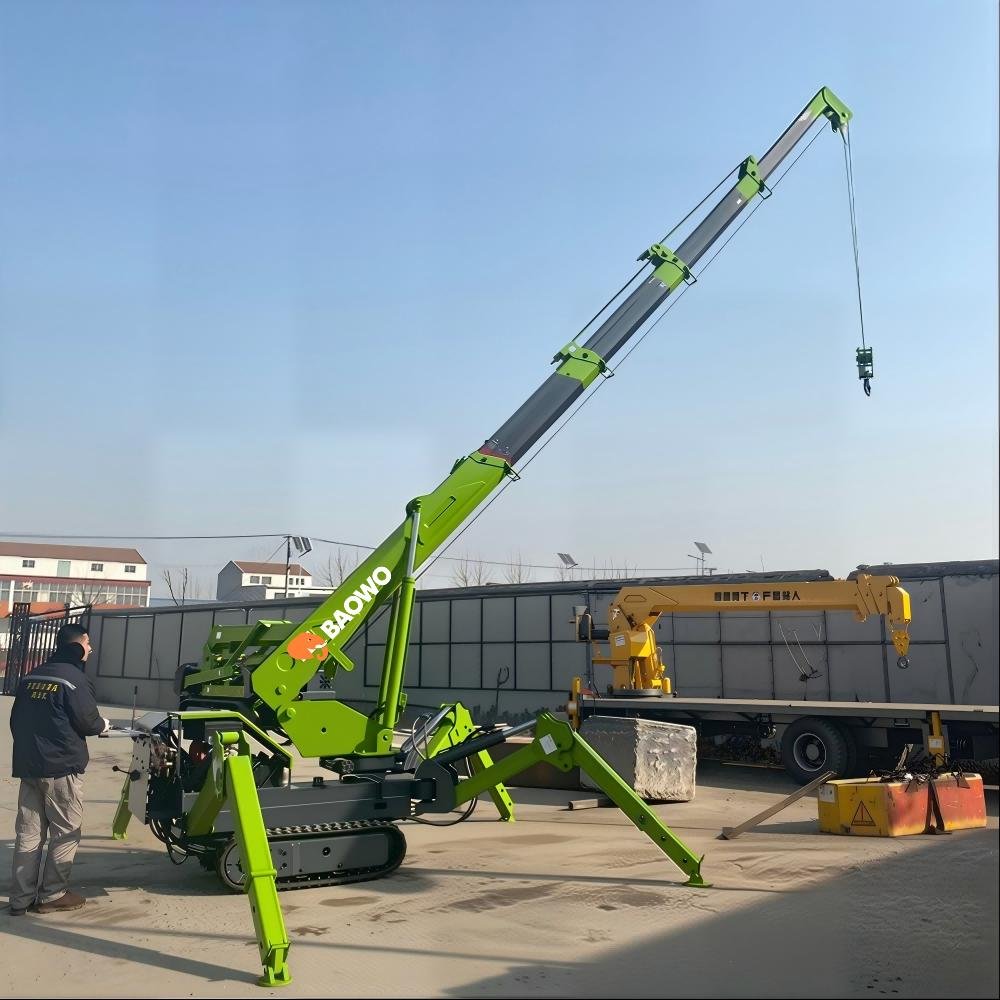

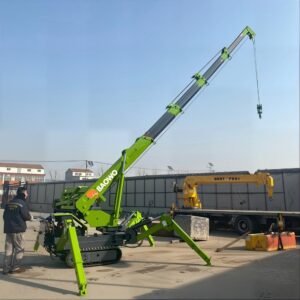

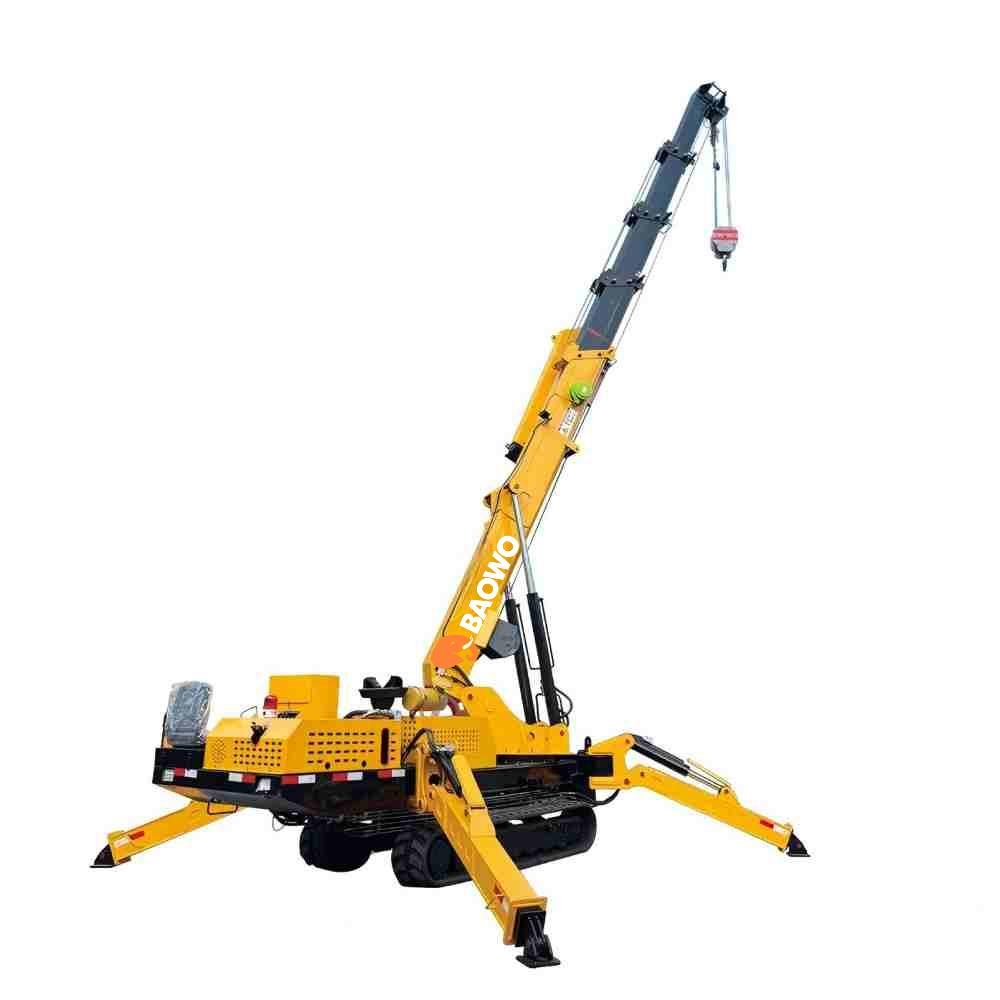

The BAOWO BW-12T Spider Crane is the ultimate heavy-duty mini crawler crane, engineered for industrial and construction projects where space is limited but lifting power cannot be compromised. Featuring a 12-ton lifting capacity and a 22-meter maximum lift height, it handles heavy machinery, large-scale steel structures, and high-rise glass curtain walls with precision and safety.
Its 6-section hexagonal fully automatic boom ensures maximum structural strength and stability, while the 1850mm narrow chassis allows access through tight gates, factory aisles, and urban construction sites. With dual power options (Diesel + Electric) and advanced safety systems, the BW-12T combines unmatched lifting capability with maneuverability and operational efficiency.
Why Choose BAOWO|
-
Direct manufacturer from Xuzhou, China
-
OEM & ODM customization available
-
Flagship heavy-duty spider crane exported globally
-
Full after-sales support and spare parts supply
-

BAOWO BW-12T lifts 12 tons up to 22m. 6-section automatic hexagonal boom, 1850mm ultra-narrow chassis. Ideal for industrial, steel & curtain wall projects.
BAOWO BW-12T lifts 12 tons up to 22m. 6-section automatic hexagonal boom, 1850mm ultra-narrow chassis. Ideal for industrial, steel & curtain wall projects.
BAOWO BW-12T lifts 12 tons up to 22m. 6-section automatic hexagonal boom, 1850mm ultra-narrow chassis. Ideal for industrial, steel & curtain wall projects. Key Specifications|
-
Max Lifting Capacity: 12T (12,000kg)
-
Max Lifting Height: 22 m (4-fall rope)
-
Max Working Radius: 21.5 m × 1.4T
-
Boom Type: 6-section hexagonal fully automatic telescopic boom (5.5m – 21m)
-
Machine Dimensions: 6050mm × 1850mm × 2300mm
-
Total Weight: 10,500kg
-
Power Options: Diesel 65kW + Electric 15kW (380V)
-
Travel Speed: Dual speed 0–0.8 km/h / 0–2 km/h
-

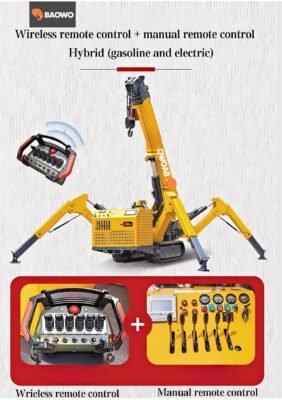

Control System: Wireless remote control (100m range)
-
Safety Features: Torque limiter, anti-rollover sensors, hydraulic support legs, voice alarm system
Key Selling Points|
-
Ultimate Lifting Power: Industry-leading 12-ton capacity handles the heaviest steel, glass, and machinery.
-
Unrivaled Vertical Reach: 22-meter lift height for high-rise facades, bridge work, and rooftop installations.
-
Compact Footprint: Only 1850mm wide, enabling operations in tight spaces where standard cranes cannot fit.
-
Hexagonal Boom Strength: 6-section telescopic boom ensures structural rigidity and precise operation.
-
Hybrid Power Flexibility: Diesel for outdoor heavy lifting, Electric for indoor emission-free tasks.
-
Advanced Safety Suite: Remote control, torque limiter, anti-rollover sensors, hydraulic supports, and voice alarms ensure secure operations.

BAOWO BW-12T lifts 12 tons up to 22m. 6-section automatic hexagonal boom, 1850mm ultra-narrow chassis. Ideal for industrial, steel & curtain wall projects.
Typical Applications|

The BAOWO BW-12T (HC12.0) Spider Crane is the ultimate heavy-duty mini crawler crane, engineered for industrial and construction projects where space is limited but lifting power cannot be compromised. Featuring a 12-ton lifting capacity and a 22-meter maximum lift height, it handles heavy machinery, large-scale steel structures, and high-rise glass curtain walls with precision and safety. -
Large-scale steel structure assembly
-
High-rise glass curtain wall installation
-
Industrial machinery lifting and factory relocation
-
Bridge and rooftop construction
-
Confined urban and indoor industrial projects
-
-
